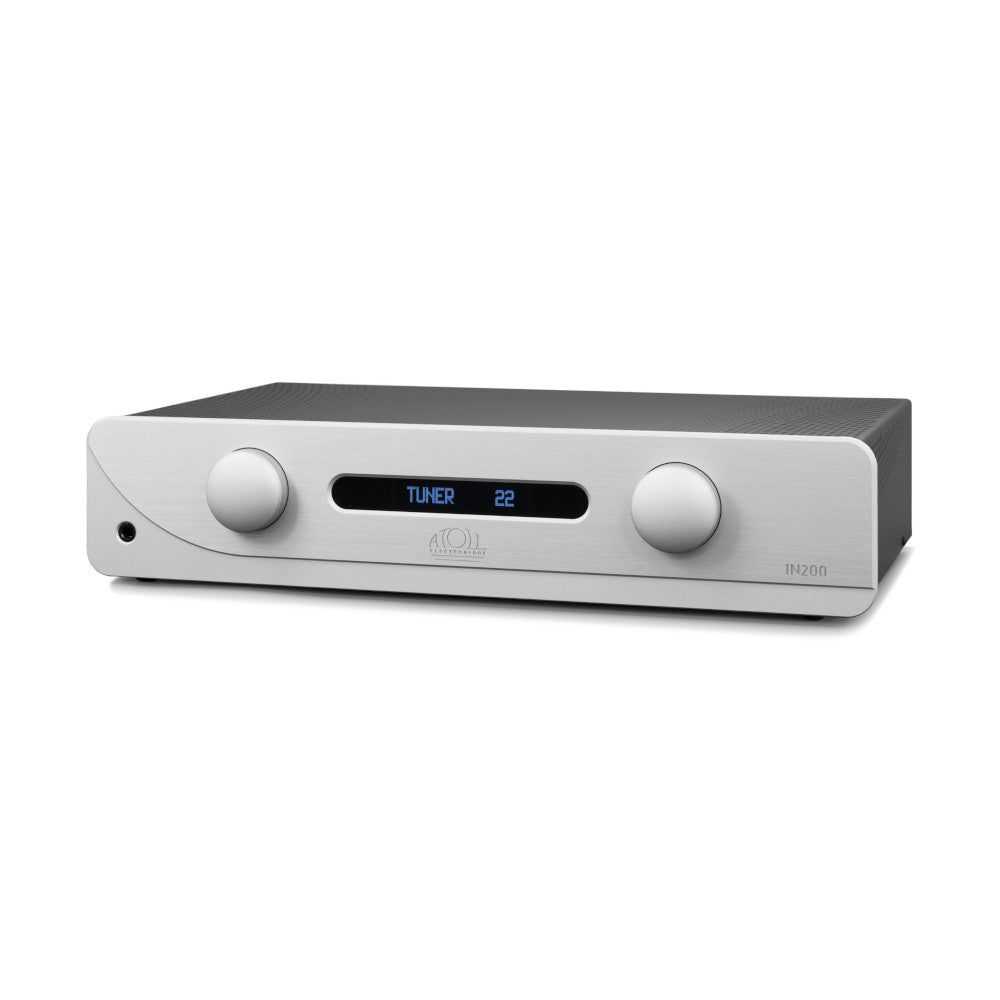

Atoll IN200 Evolution Integrated Amplifier Silver

The integrated amp-preamp IN200 Evolution is manufactured with the greatest care: We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.

Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect, every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.

FEATURES

• 8 mm brushed, micro-blasted and anodized aluminum front panel, high-
• precision engraving.

• 1.5 mm steel chassis.

• 2×120 Wrms / 8Ω power.

• Two 340 VA toroidal transformers for the audio stages, plus 10 VA for the
• digital stages.

• High-quality and shielded MKP coupling capacitors.

• Bipolar transistor and LED current sources to ensure perfect voltage stability.

• New tellurium copper speaker outputs.

• Dual push-pull MOS-FET power stage.

• Class A/B output stage biasing.

• Possibility of choosing standby mode: Low consumption or preheating.

• Two volume attenuators: 1 per channel to maintain the dual mono
• architecture.

• Possibility to manage balance and memorize it.

• Possibility to rename the inputs.

• High contrast OLED display (on or off mode after 5 seconds of inactivity).

• Double-sided printed circuits with nickel/gold finish.

• ATOLL global remote control supplied as standard.

• The IN200 EVO can receive the following optional boards:
            – DAC boards: DA100 and DA200.
            – PHONO boards: P50 and P100 (can be combined with DAC boards).
• Made In France

TECHNICAL DATA

• Power in Wrms/channel/8Ω (230v): 120 W

• Power in Wrms/channel/4Ω (230v): 200 W

• Power supply: 2×340 VA + 10 VA

• Total capacitive: 59 220 µF

• Number of inputs: 5+1 BY-PASS

• Power consumption with switch off: 0 W

• Power consumption in standby (low consumption): <0.5 W

• Power consumption in preheating mode: 18 W

• Power consumption in operation: 19 W – 600 W

• Input impedance: 220 kΩ

• Maximum input level: 3.5 Vrms

• Sensitivity: 350 mV

• Signal/noise ratio: 100 dB

• Distortion at 1 kHz: 0.05% / (10 W)

• Bandwidth: 5 Hz – 100 kHz

• Rise time: 2.5 µs

• Dimensions: 440×309×95 mm

• Weight: 12 Kg
