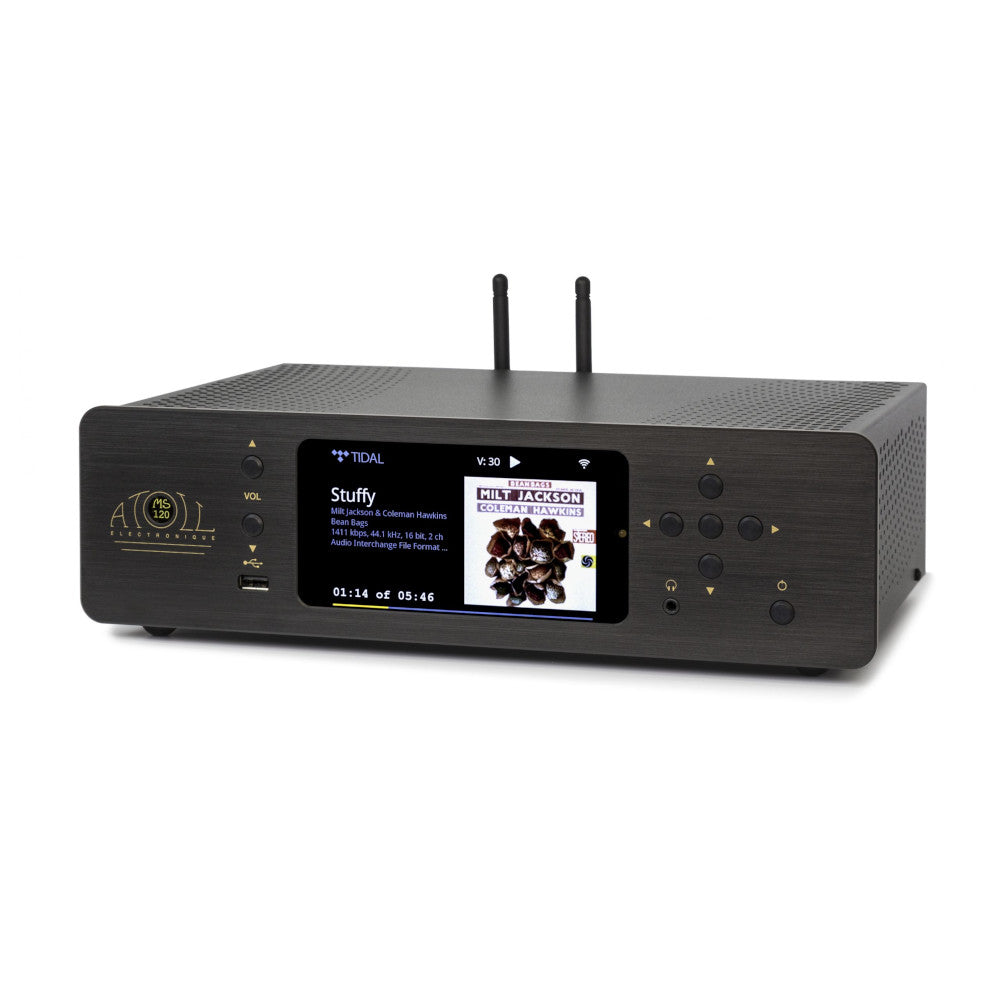

Atoll MS120 Streamer/DAC Black

Whether you’re listening to high-definition streaming music locally from your network, from a USB key, a hard drive, Bluetooth®, or your favourite internet radio stations, our mini network player MS120 is adapted to the current needs related to reading dematerialized music files. It embeds a high-performance converter and can be used as a pure source or preamplifier.

Experience high-fidelity streaming with Atoll MS120 Network Player. Supporting DLNA, Wi-Fi, and AirPlay 2, these streamer offer seamless access to Spotify, Tidal, Qobuz, and over 100,000 internet radio stations. Enjoy gapless playback, Hi-Res audio, and Roon compatibility, all controlled via a stunning 5″ color display or the Atoll Signature 2 app. Elevate your Hi-Fi system with bit-perfect digital performance

FEATURES

• 4 mm brushed aluminium front.

• 2 transformers 5 VA + 1×3.2 VA + 1×4.6 VA (audio stages).

• High-quality MKP technology link capacitors.

• BURR-BROWN PCM1796 converter:
           – Dynamic: 123 dB.
           – Signal/Noise ratio: 123 dB.

• 5″ TFT LED colour graphic display (800*480).

• Discrete component audio stages without negative feedback in pure Class A.

• Analogue volume management (switched resistors) that can be bypassed.

• A specific power supply is dedicated to the audio stages.

• A specific power supply is dedicated to the digital audio line converter.

• Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.

• Playback of audio files on the network (DLNA and UPnP compatible) in a wired RJ45 or Wi-Fi connection.

• Display of names, tags, resolutions and album covers.

• “Gapless” system (no cut between pieces).

• Ability to create playlists.

• USB-A file systems: FAT32, NTFS, EXT2/3/4.

• ATOLL “streamer” remote control supplied as standard.

• “ATOLL Signature 2” App (Android and IOS).

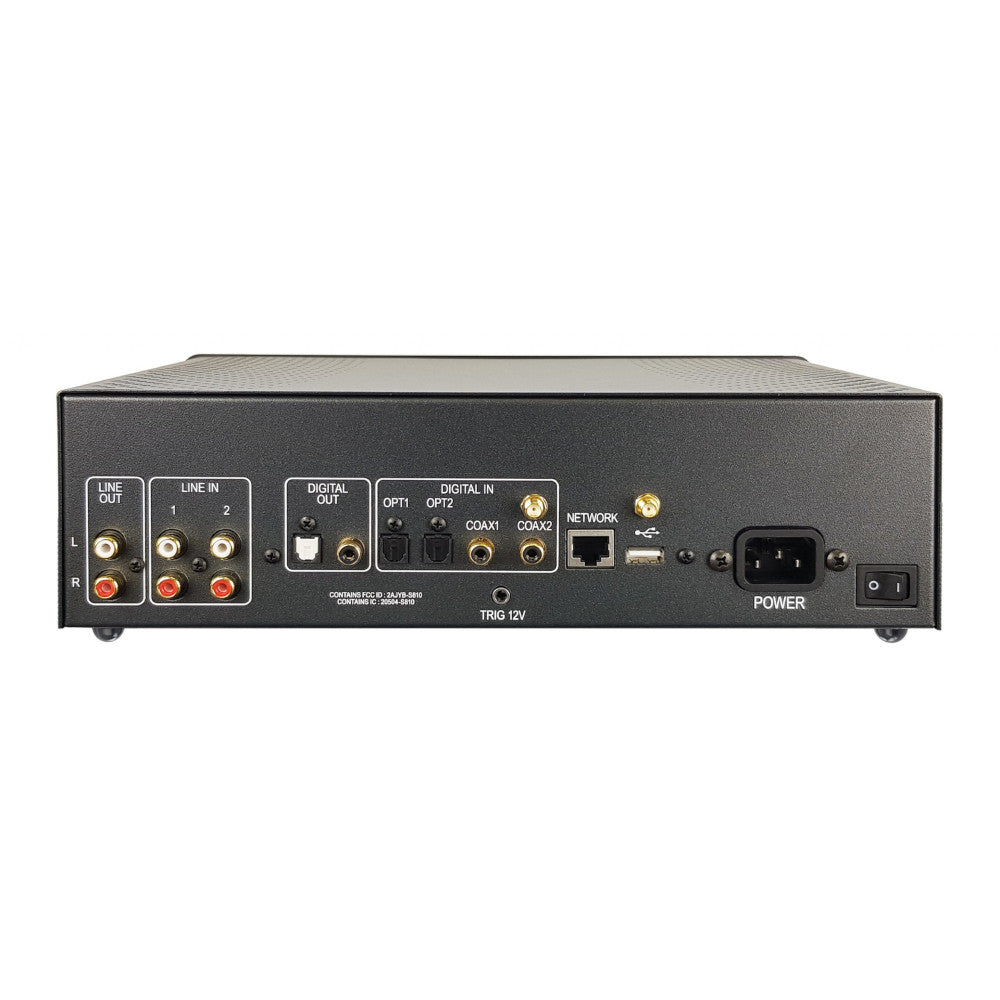

CONNECTIVITY

• Audio inputs
  2 Stereo line inputs.
  4 Digital inputs: 2 Coaxial, 2 Optical.
  1 Bluetooth® 4,2 input.
  2 USB-A inputs (1 front, 1 rear).
• Audio outputs
  1 Stereo line output.
  2 Digital outputs: 1 Coaxial, 1 Optical Toslink.
• Various
  1 RJ45 input (network).
  1 Trigger output (12V).
  1 WIFI antenna (802.11b/g/n).
  1 Bluetooth® antenna.

TECHNICAL DATA

• Power supply: 9 VA + 7,8 VA (audio)

• Total of capacitors: 5 435 µF

• Output stages: 2 discrete component stages, biased in class A with no feedback

• Dynamic: 123 dB

• Output impedance: 22 Ω

• Maximum input level: 3,5 Vrms

• Output level: 2,8 Vrms

• Signal/Noise ratio: 123 dB

• Distortion at 1 kHz: 0,0005%

• Bandwidth: 5 Hz – 20 kHz

• Rising time: 1,7 µs

• Digital/analogue converter: BURR-BROWN  PCM1796 24 bits/192 kHz – DSD128

• Dimensions: 320×210×94 mm

• Weight: 3 Kg
