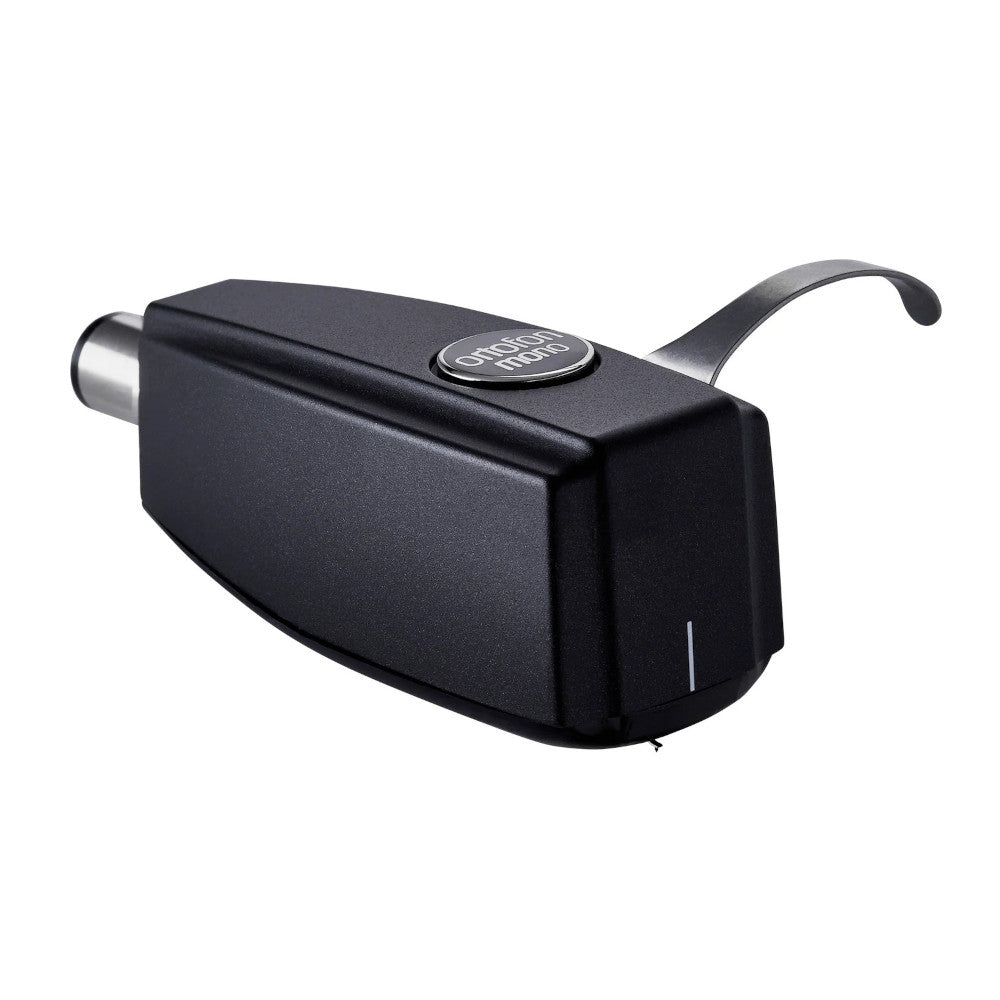

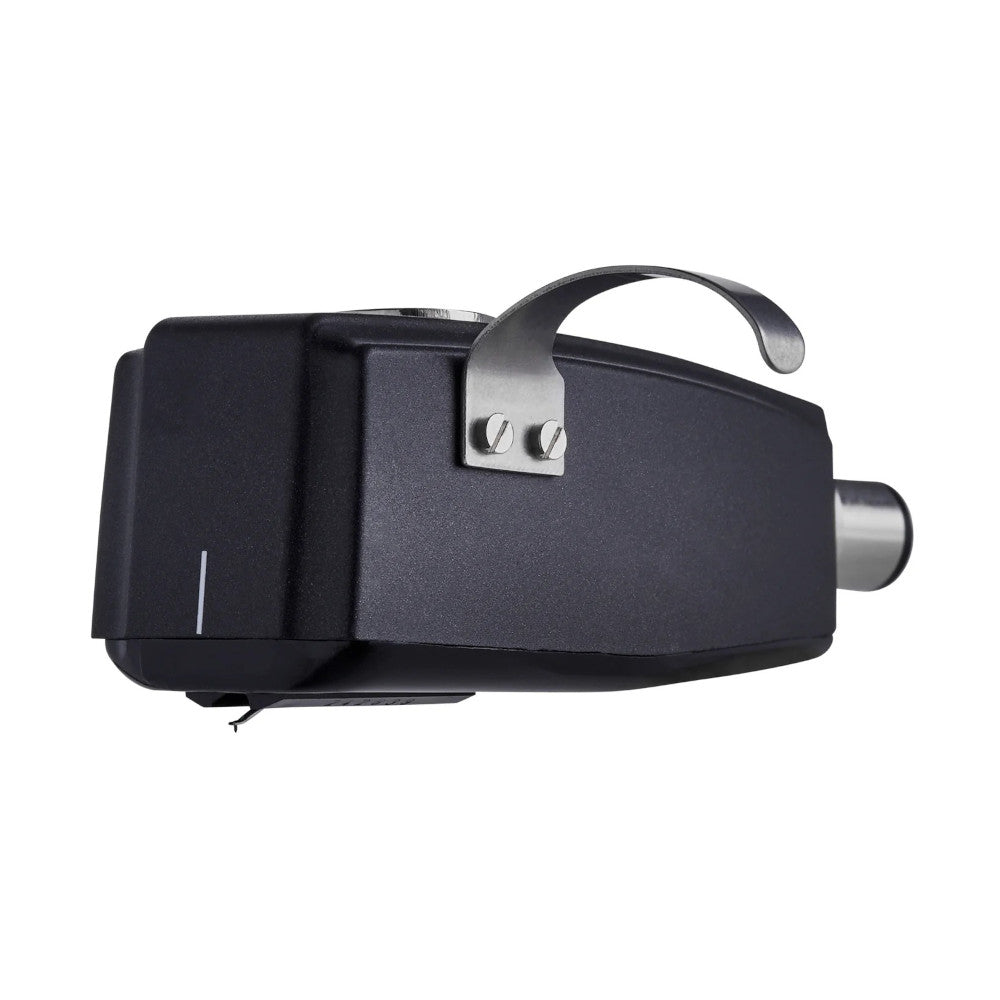

Ortofon SPU Mono G MKII Cartridge

The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.

The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.

SPECIFICATIONS

• Output voltage at 1 kHz, 5cm/sec: 3 mV

• Frequency response 20 Hz - 20 kHz: 2/- 1 dB

• Tracking ability at 315 Hz: 70 µm

• Compliance, dynamic, lateral: 12 µm/mN

• Stylus type: Spherical

• Stylus tip radius: R 25 µm

• Tracking force range: 3.0-5.0 g (30-50 mN)

• Tracking force, recommended: 4.0 g (40 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 100 ohm

• Recommended load impedance: 47 kohm

• Coil wire material: High Purity Copper (OFC)

• Cartridge body material: Ground wood and resin composite

• Cartridge colour: Black matte

• Cartridge weight: 28 g
