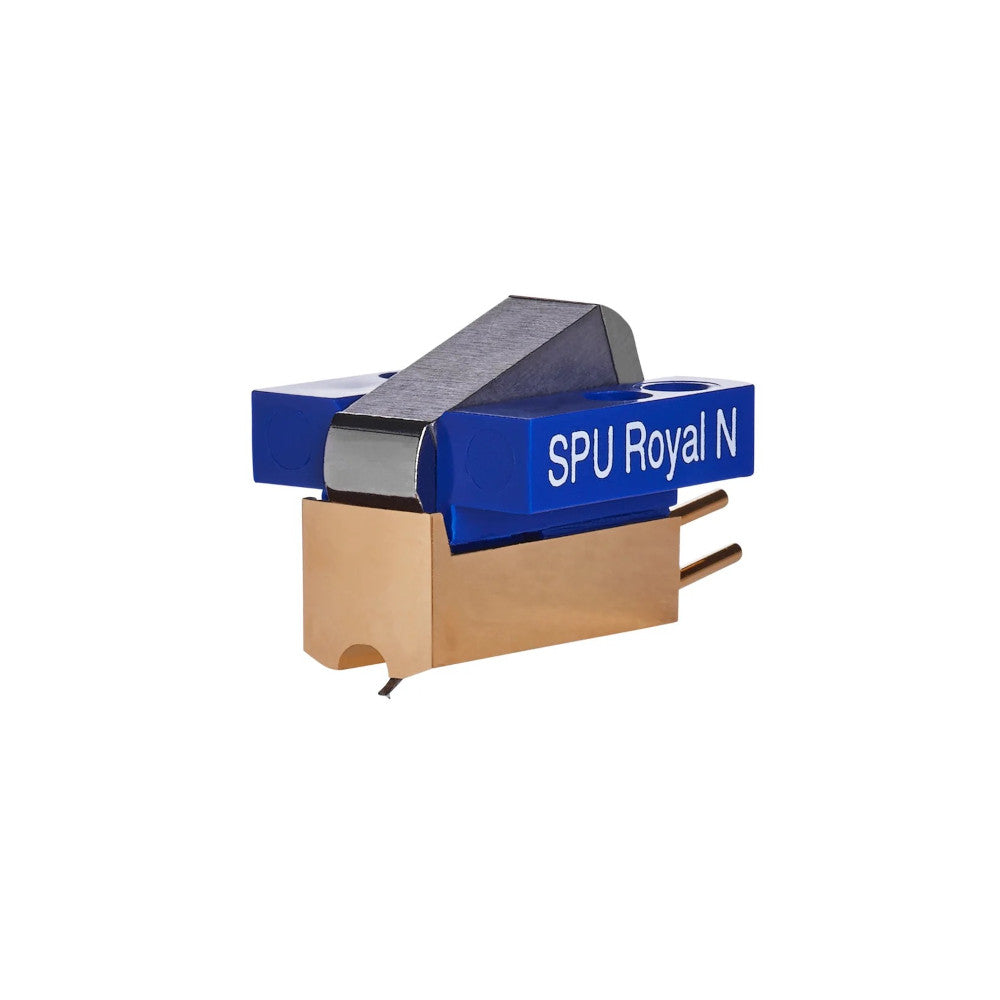

Ortofon SPU Royal N Cartridge

The SPU Royal N cartridge, with its half-inch adaptor, provides the ability to mount the unit on standard headshells, as well as in a wider range of tonearms.

The SPU Royal N features Electrum coils, consisting of a gold and silver alloy, providing uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.

The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.

The high purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.

SPECIFICATIONS

• Channel balance at 1 kHz: 1 dB

• Output voltage at 1 kHz, 5cm/sec: 0.2 mV

• Channel separation at 1 kHz: 25 dB

• Frequency response 20 Hz - 20 kHz: 1,5/- 0 dB

• Tracking ability at 315 Hz: 60 µm

• Compliance, dynamic, lateral: 8 µm/mN

• Stylus type: Nude Ortofon Replicant 100

• Stylus tip radius: r/R 5/100 µm

• Tracking force range: 2.5-3.5 g (25-35 mN)

• Tracking force, recommended: 3.0 g (30 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 7 ohm

• Recommended load impedance: 100 ohm

• Coil wire material: Goldplated silver

• Cartridge weight: 13 g
