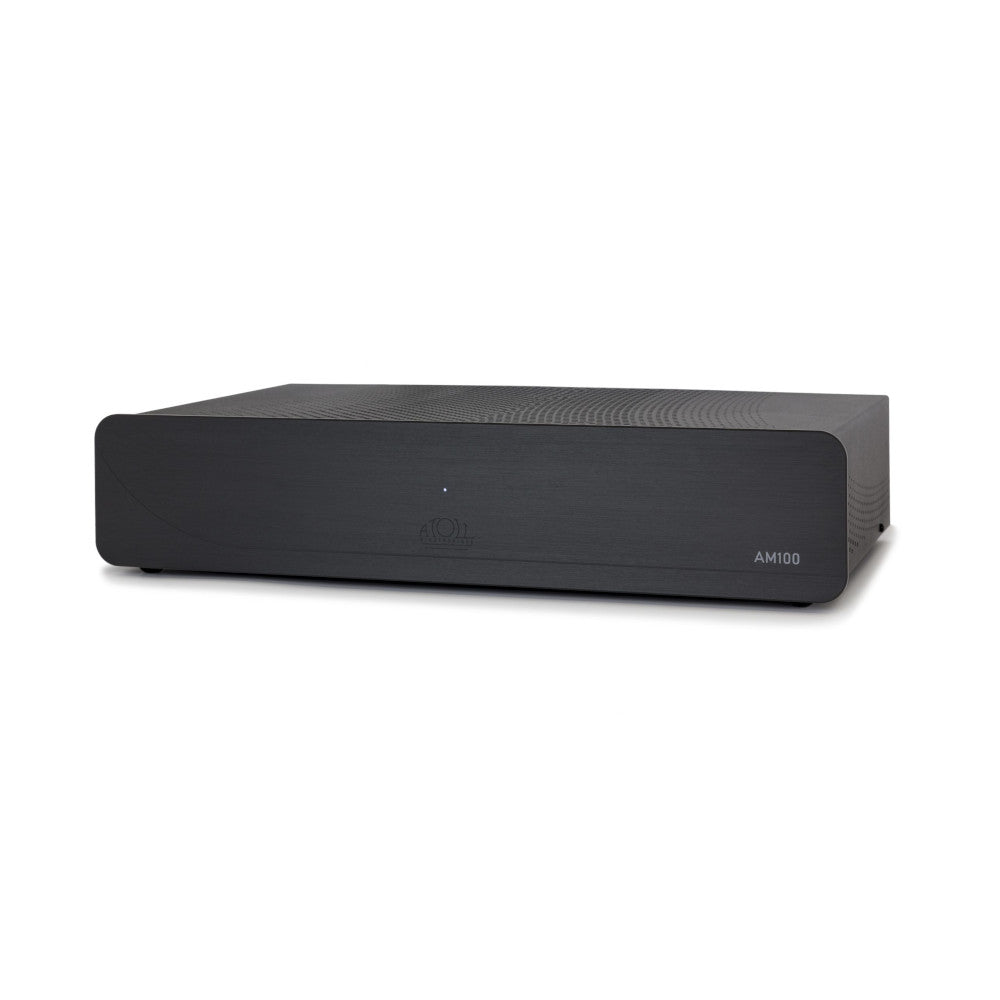

Atoll AM100 Signature Power Amplifier Black

The AM100 Signature block is suitable for most HIFI or audio-video applications. Coupled with a PR200 Signature, listening is transparent and detailed, and the shots are rigorously respected. Very scalable, it can be used alone or in bi-amplification. The amplifier is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).

FEATURES

• 4 mm brushed aluminium front.

• 2×100Wrms / 8Ω

• 2 toroidal transformers of 340 VA each.

• Filter capacitors: 4×6800 μF.

• Balanced discrete component audio stages.

• MOS-FET power transistor.

• Polarization of output stages in class A/B.

• Double-sided circuit boards with nickel/gold finish.

• Monoblock bridgeable.

• 12V Trigger input.

• Made In France

TECHNICAL DATA

• Power Wrms/channel/8Ω: 100 W (1×150 W in mono)

• Power Wrms/channel/4Ω: 140 W (1×165 W in mono)

• Pulse power: 180 W / channel

• Power supply: 2×340VA

• Total of capacitors: 32,247 µF

• Number of entries: 2

• Input impedance: 47 kΩ

• Sensitivity: 1,77V

• Signal/Noise ratio: 100 dB

• Distortion rate at 1 kHz: 0,05% / 10 W

• Bandwidth: 5 Hz – 200 kHz

• Rising time: 1,3 µs

• Dimensions: 440×291×95 mm

• Weight: 11 Kg

CONNECTIVITY

• 1 RCA stereo line input.

• 1 RCA stereo line output.

• 1 Trigger input (12V).

• Gold-plated screw terminals.
