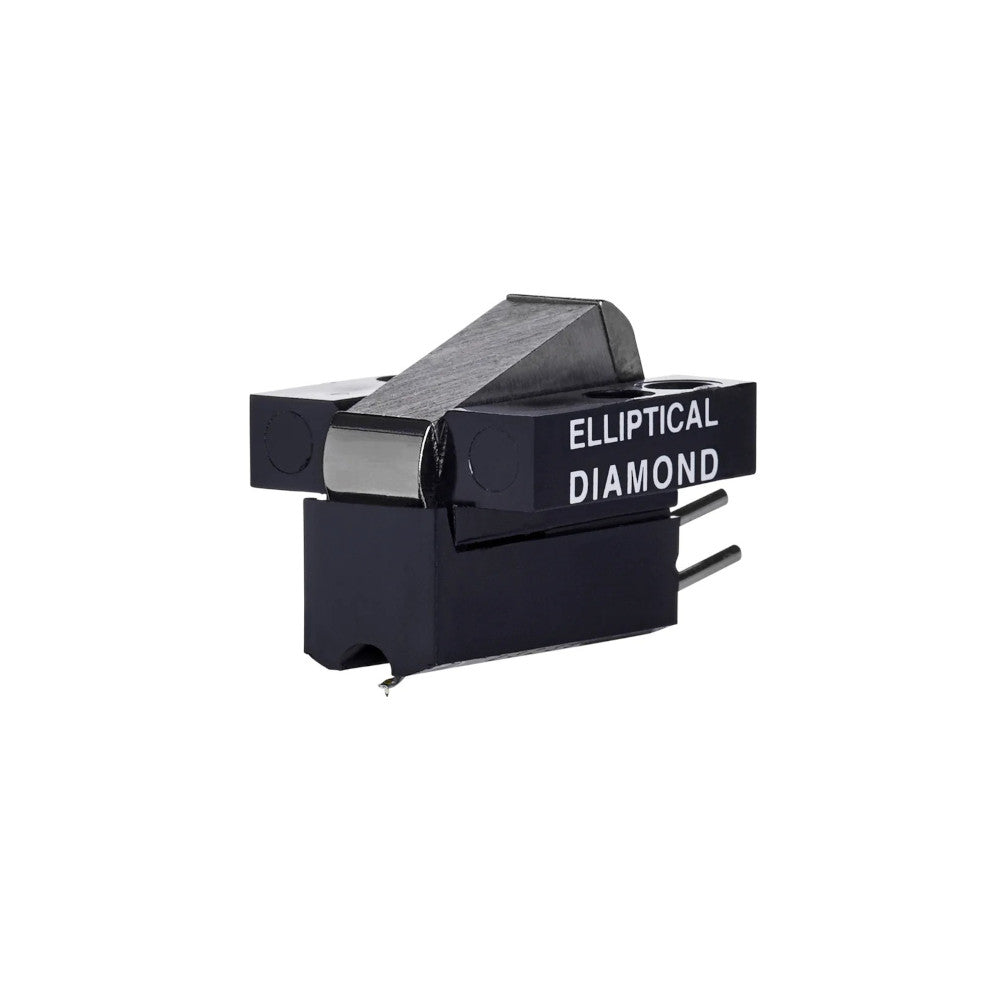

Ortofon SPU Classic N E Cartridge

The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging. The Classic NE can be used with vintage SPU-type headshells to recreate an authentic and functional SPU cartridge.

The SPU Classic NE is sold without the integrated headshell unit. Vintage SPU-type headshells are no longer available.

Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using the SPU N adaptor. Contact us for more information.

SPECIFICATIONS

• Channel balance at 1 kHz: 1 dB

• Output voltage at 1 kHz, 5cm/sec: 0.2 mV

• Channel separation at 1 kHz: 20 dB

• Frequency response 20 Hz - 20 kHz: 3/-2 dB

• Tracking ability at 315 Hz: 60 µm

• Compliance, dynamic, lateral: 8 µm/mN

• Stylus type: Nude Elliptical

• Stylus tip radius: r/R 8/18 μm

• Tracking force range: 3.0-5.0 g (30-50 mN)

• Tracking force, recommended: 4.00 g (40 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 2 ohm

• Recommended load impedance: 10 ohm

• Coil wire material: High Purity Copper (OFC)

• Cartridge colour: Black matte

• Cartridge weight: 13 g
