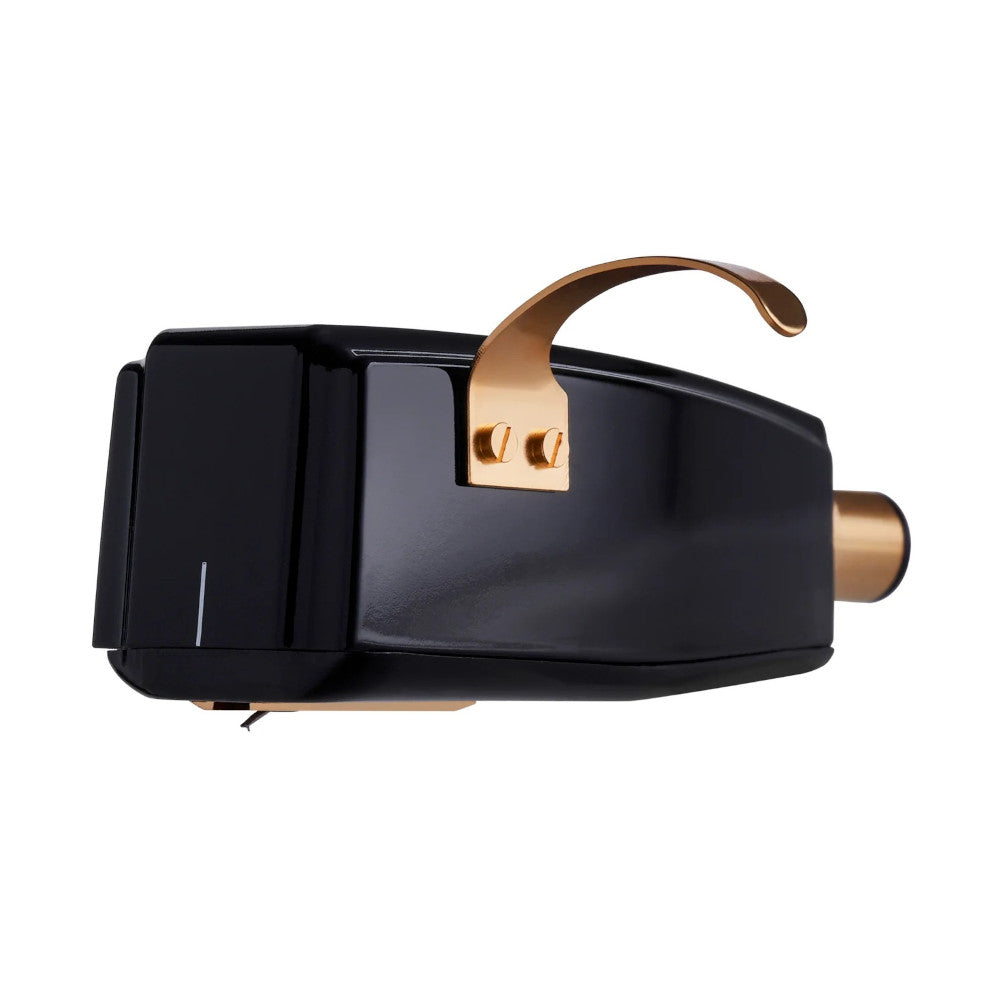

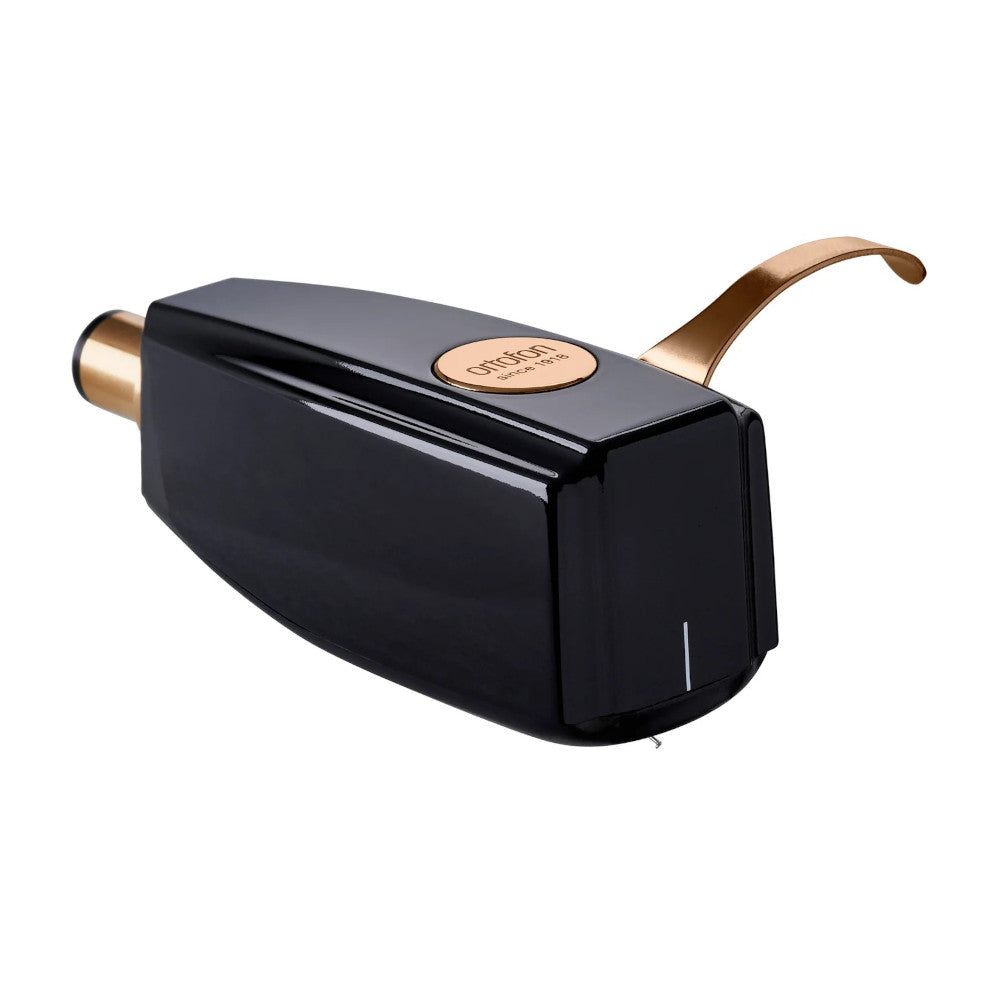

Ortofon SPU Royal G MKII Cartridge

The SPU Royal G MkII provides a playback experience that embodies the essence of analog with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.

The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.

Electrum coils, consisting of a gold and silver alloy, provide uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.

SPECIFICATIONS

• Channel balance at 1 kHz: 1 dB

• Output voltage at 1 kHz, 5cm/sec: 0.2 mV

• Channel separation at 1 kHz: 25 dB

• Frequency response 20 Hz - 20 kHz: 1.5/- 0 dB

• Tracking ability at 315 Hz: 60 µm

• Compliance, dynamic, lateral: 8 µm/mN

• Stylus type: Nude Ortofon Replicant 100

• Stylus tip radius: r/R 5/100 µm

• Tracking force range: 2.5-3.5 g (25-35 mN)

• Tracking force, recommended: 3.0 g (30 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 7 ohm

• Recommended load impedance: 100 ohm

• Coil wire material: Goldplated silver

• Cartridge body material: Ground wood and resin composite

• Cartridge colour: Shiny black

• Cartridge weight: 30 g
