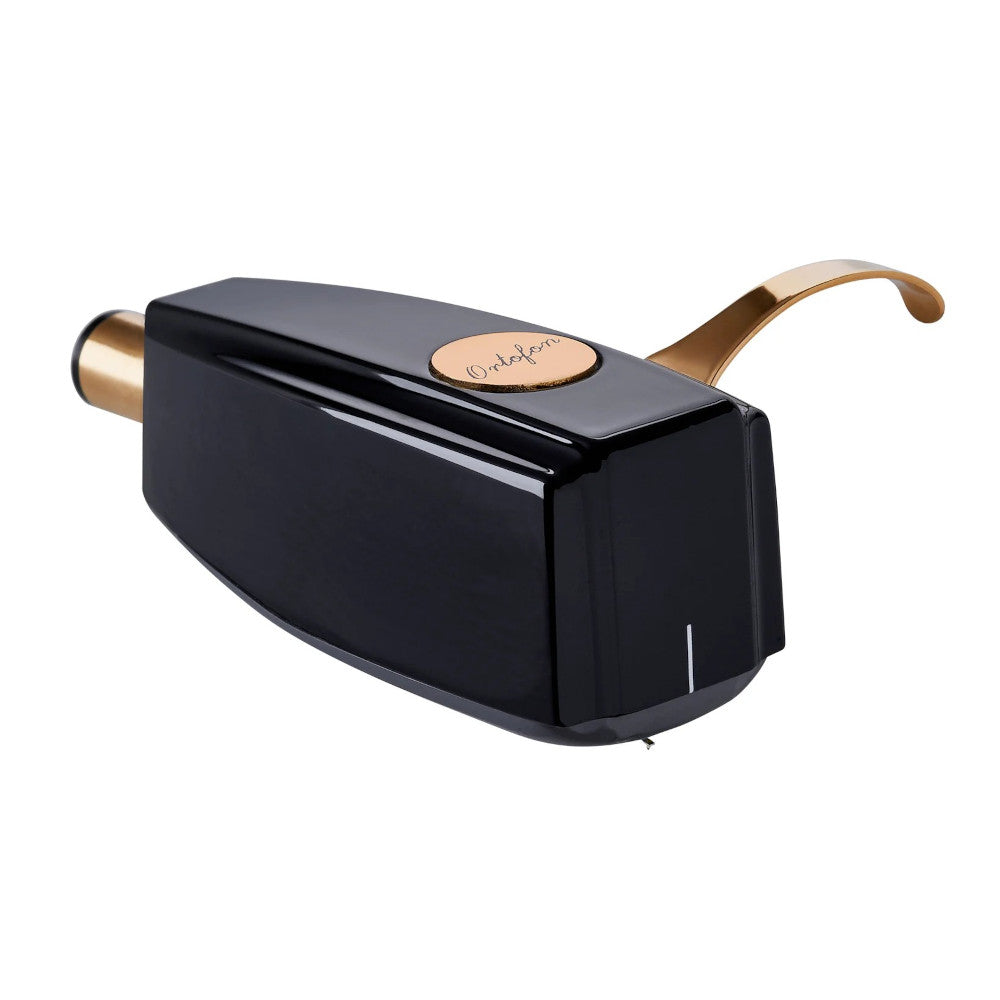

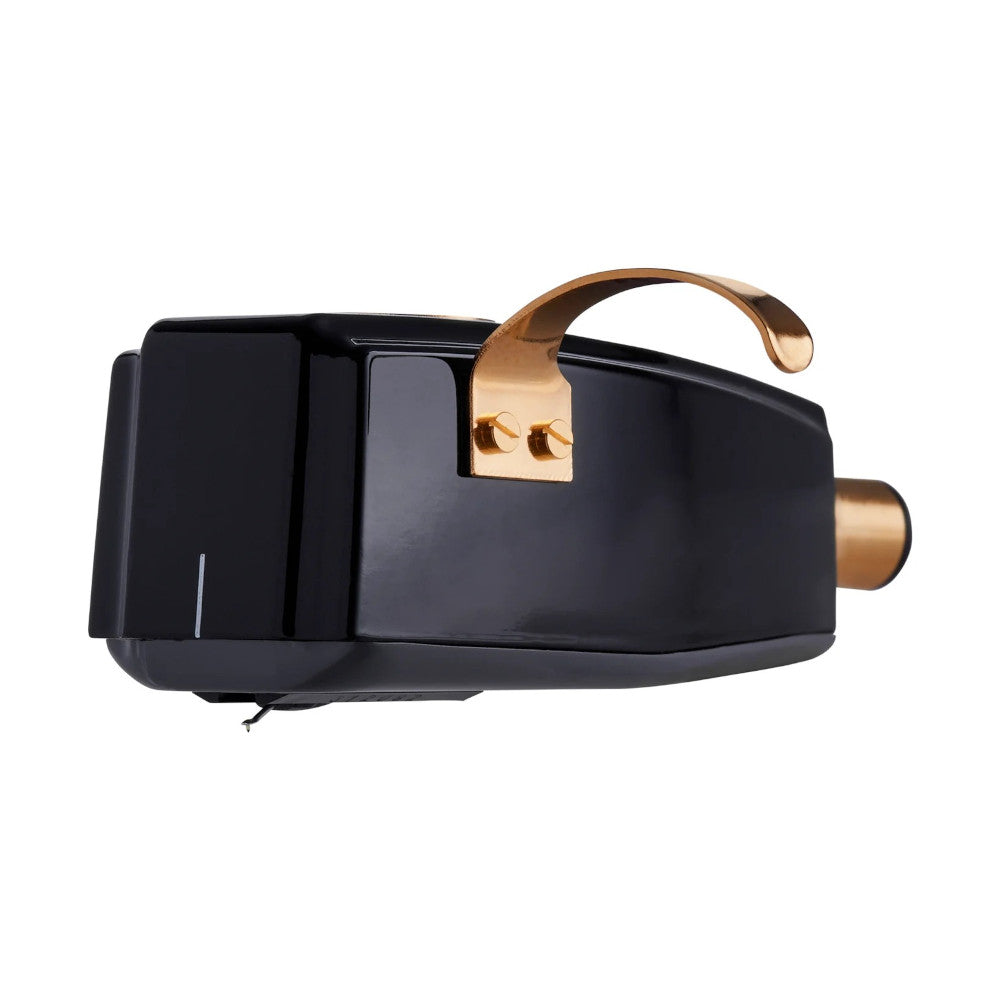

Ortofon SPU Synergy G Cartridge

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

SPECIFICATIONS

• Channel balance at 1 kHz: 1.5 dB

• Output voltage at 1 kHz, 5cm/sec: 0.5 mV

• Channel separation at 1 kHz: 23 dB

• Frequency response 20 Hz - 20 kHz: 2 dB

• Tracking ability at 315 Hz: 60 µm

• Compliance, dynamic, lateral: 8 µm/mN

• Stylus type: Nude Elliptical

• Stylus tip radius: r/R 8/18 µm

• Tracking force range: 3.0-4.0 g (30-40 mN)

• Tracking force, recommended: 3.5 g (35 mN)

• Tracking angle: 20°

• Internal impedance, DC resistance: 2 ohm

• Recommended load impedance: 10 - 50 ohm

• Coil wire material: High Purity Copper (OFC)

• Cartridge body material: Ground wood and resin composite

• Cartridge colour: Shiny black

• Cartridge weight: 28 g
